Water has a way of finding the weakest spot in a backyard, especially after heavy rain. In many Sydney properties, clay-heavy soil, low spots, or hard surfaces can make it harder for water to drain away properly. When that happens, it often shows up as soggy lawns, muddy patches, pooling water, erosion, or water collecting near retaining walls, patios, and paved areas.
There are drainage solutions available for most backyard water problems, but the right option depends on what kind of issue you’re dealing with. Some systems are made to capture surface runoff, while others are better for water building up below the ground. French drains, ag pipe, and spoon drains are three common examples, but they’re used in different situations.
To understand which one is the best fit, we’ll explain these three drainage options and when they’re typically used in Sydney backyards.
What Causes Backyard Drainage Problems?
Backyard drainage problems usually happen when water isn’t moving through the yard properly. Several factors can contribute to this in Sydney backyards including:
- Poor surface runoff – If the yard doesn’t fall away properly, water can sit on the surface instead of draining off. This happens in flat areas, low corners, or parts of the yard where the ground levels were not shaped correctly during construction or landscaping.
- Heavy rainfall – Storms can dump a large amount of water in a short time. When there’s no clear path for water to move away, it can quickly lead to pooling, muddy patches, and runoff problems.
- Clay or compacted soil – Clay-heavy soil drains slowly because it tends to hold water instead of letting it pass through easily. Compacted ground can cause similar issues, especially in areas affected by construction work or machinery.
- Sloping blocks – Water naturally moves downhill on a sloping property. Without proper drainage, the water can collect at the bottom of the yard, build up behind retaining walls, or run through outdoor areas where it’s not wanted. This is one of the reasons drainage needs to be considered carefully when landscaping a sloping block.
- Hard surfaces and landscaping features – Paving, concrete, retaining walls, garden edging, and new turf can all change how water flows through the yard. This means drainage problems can sometimes appear after landscaping work changes the natural direction of runoff.

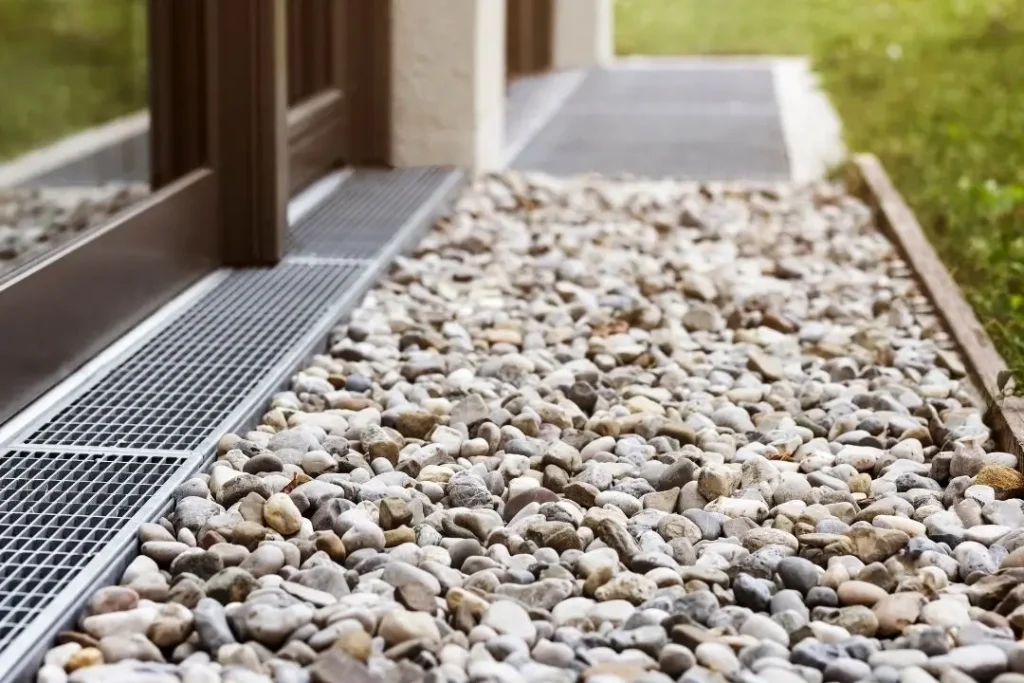

What is a French Drain?

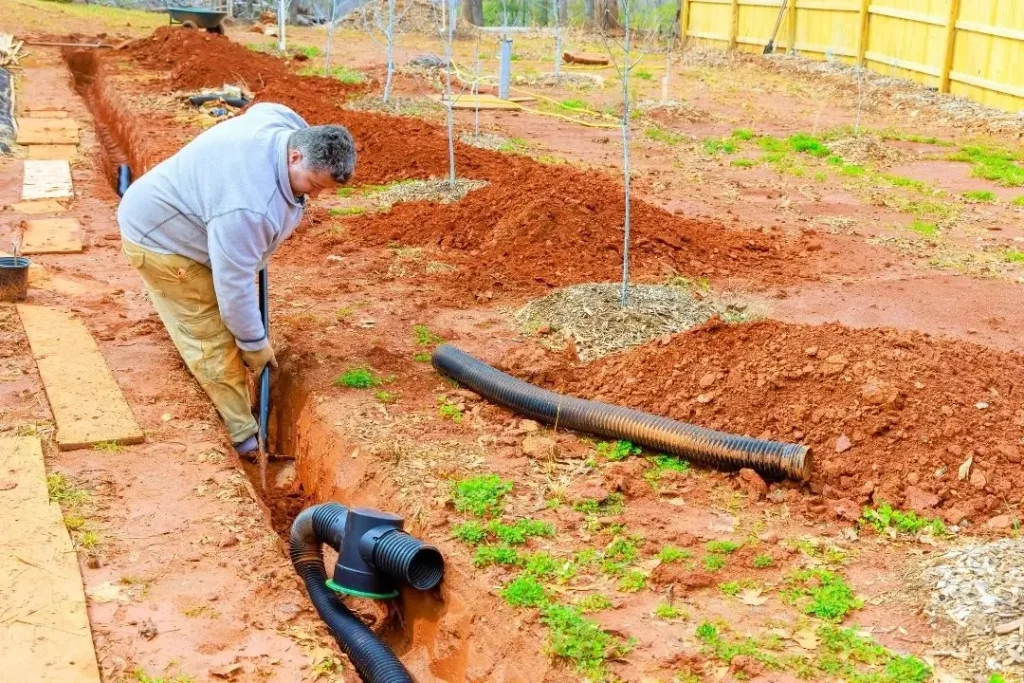

A French drain is a gravel-filled trench designed to collect and redirect water below the surface. It’s commonly used in backyards where the ground stays wet, water collects in certain areas, or drainage is needed behind landscaping features. In some cases, it can also include a perforated pipe inside the trench. The gravel helps water enter the system, and the pipe can carry it away to a suitable discharge point.
What is Ag Pipe?

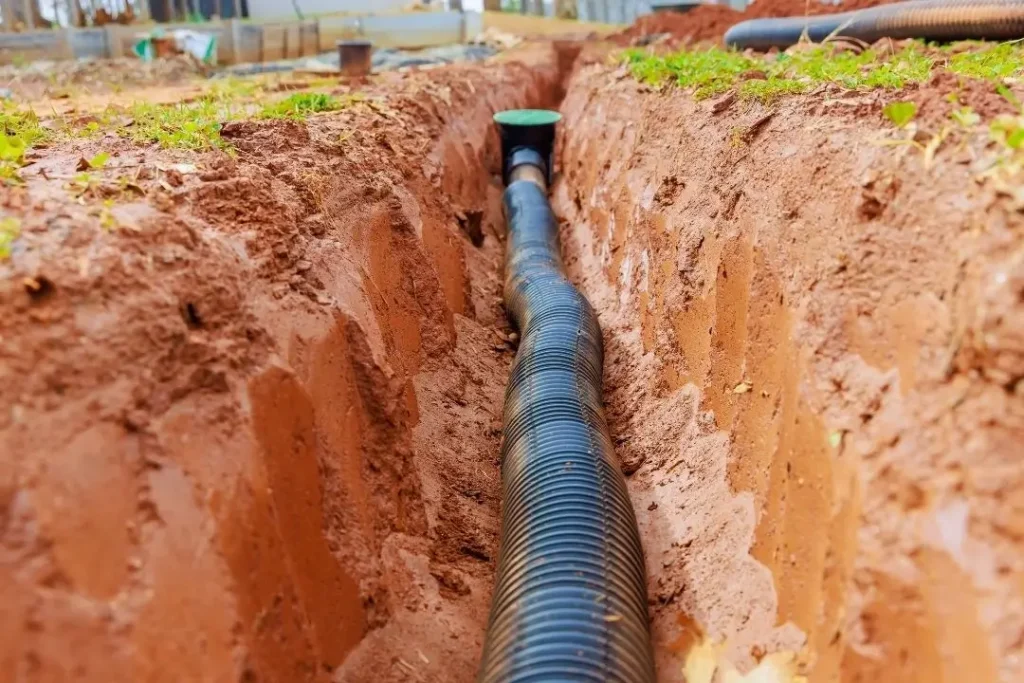

Ag pipe, short for agricultural pipe, is a perforated drainage pipe used to collect and redirect water below the ground. The small holes in the pipe allow water in the surrounding soil to enter the pipe so it can be redirected away from the area. The ag pipe is installed inside a trench filled with gravel and wrapped with geofabric. This setup helps water flow into the pipe while reducing the chance of soil and debris clogging the system.
What is a Spoon Drain?

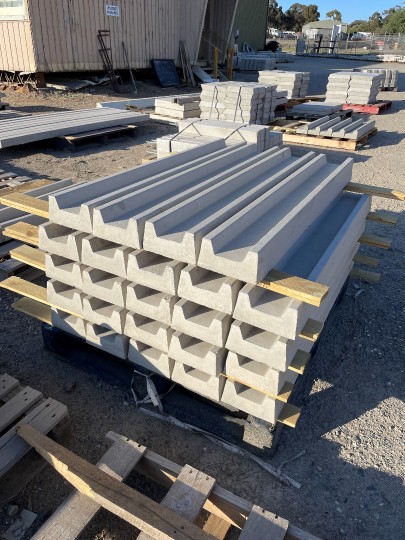

Photo courtesy of: https://bendigoprecastconcrete.com.au/product-spoon-drain.html
A spoon drain is a shallow, open drain that sits on a surface and is designed to collect and move runoff. It’s usually made from concrete and has a curved channel that guides water away from the problem areas. Spoon drains are commonly installed along driveways, patios, paved areas, and lawn edges where surface water needs to be captured before it spreads further through the yard.
Comparing French Drains, Ag Pipe, and Spoon Drains
Appearance
French drains and ag pipe systems are usually hidden below the ground, so they don’t change the look of the backyard much from the surface. A spoon drain is different because it remains visible as an open surface channel. This makes it more noticeable in the yard, but it also makes it easier to inspect and clean when leaves, dirt, or debris build up.
Type of Water Managed
French drains and ag pipe systems are designed to manage water below the ground.They’re used when water is building up in the soil rather than running openly across the yard. On the other hand, surface runoff is what spoon drains are made for. Instead of dealing with moisture below the ground, they catch water moving across the top of the yard and channel it away.
Where Each One is Used
French drains are commonly used in areas where water sits in the ground, such as soggy lawn sections or around garden beds, or beside footings. Ag pipe is commonly used behind retaining walls, along the base of slopes, or inside drainage trenches where underground water needs to be collected and redirected.
Spoon drains are often more used in areas where runoff moves across the surface, such as along driveways, patios, paths, garage entries, and the edges of paved areas. They’re suited to places where water needs to be caught and moved away before it spreads into the rest of the yard.
Maintenance
Underground systems like French drains and ag pipe require little day-to-day maintenance once they’re installed. However, because they sit below the ground, problems can be harder to spot if the system becomes blocked or stops draining effectively. Fine soil, roots, or debris can sometimes clog parts of the system, which may require flushing the pipe or clearing the outlet point.
Spoon drains are easier to keep an eye on because they remain visible on the surface. Leaves, dirt, and debris can collect in the channel over time, but these are usually simple to remove during routine yard cleaning to keep water moving freely.
Cost
The cost of each drainage option can vary depending on the layout of the yard, site access, and how much excavation or concrete work is involved.
French drains and ag pipe systems usually involve digging trenches and installing gravel, pipe, and filtration material, so the cost depends on how long or deep the system needs to be. Spoon drains can be more straightforward to install for surface runoff, although the price can still vary depending on the length of the drain and the amount of concrete work required.
When to Get Professional Advice
Backyard drainage problems aren’t always as straightforward as they appear. Water pooling in one area can sometimes be caused by something happening elsewhere in the yard, such as runoff coming from higher ground or water building up behind a structure. That’s why a wet patch, muddy area, or recurring puddle doesn’t always point to the real cause of the problem.
If you notice water pooling after rain, parts of the yard staying soggy for days, or runoff collecting near retaining walls or the house, it may be time to get professional advice. The same applies if you’re seeing more than one drainage issue at once or if you’re not sure where the water is coming from. Having your yard assessed by an experienced landscaper helps identify whether the problem involves surface runoff, subsurface water, or a combination of both, making it easier to find the right drainage solution.
Which Drainage Option Works Best for Different Backyard Problems?
The best drainage option depends on the type of water problem you’re dealing with. If the ground stays wet and soggy after rain, a French drain or ag pipe is often more suitable because it deals with water below the surface. If water is flowing across concrete, paving, or other hard areas, a spoon drain is a better fit because it’s designed to catch surface runoff.
Some backyards may also have more than one drainage issue at the same time. In that case, a combination of systems may work better to address these problems. The key is understanding where the water is coming from before choosing the solution.
